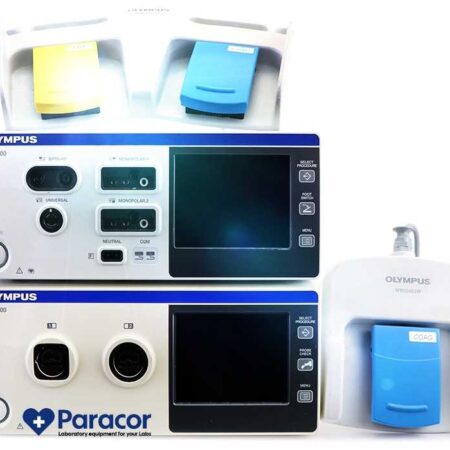

Olympus ESG-400 & USG-400 Electrosurgical Units

  • modes for bipolar prostate or transcervical procedures
  • future revolutionary surgical tissue management technology
  • ULTRA SONIC energies all in ONE platform

Original price was: $14,999.00.Current price is: $9,999.00.

SKU:USG-400 ESG-400

Olympus ESG-400 provides unrivaled resection power and access to future revolutionary surgical tissue management technology – including modes for bipolar prostate and transcervical resection or advanced energy systems. It is also part of the THUNDERBEAT system.

Offering maximum performance, safety, and simplicity for all your surgical HF applications, the latest generation ESG-400 universal HF generator provides you with unrivaled resection power as well as access to revolutionary surgical tissue management technology in the future.

The USG-400 Electrosurgical Generator, from the line of Olympus Thunderbeat products. The Thunderbeat Universal Platform is a full-featured energy system that delivers virtually every known form of surgical energy: monopolar, bipolar, advanced bipolar, and ultrasonic, making it the world’s only integration of advanced bipolar with ultrasonic energy.

This multifunctional platform is ideal for facilities looking to maximize cost and procedural efficiencies by standardizing their choice of energy systems. The Thunderbeat platform includes the ESG-400 Electrosurgical Generator and the USG-400 Ultrasonic Generator.

Olympus ESG-400 Generator delivers ultrasonic energy for simultaneous cut and coagulation of tissue with SONICBEAT Handpieces. When used with the ESG-400, the USG-400 delivers integrated bipolar and ultrasonic energy to Thunderbeat handpieces for reliable vessel sealing and to cut or coagulate soft tissue during open, laparoscopic (including single-site surgery), and endoscopic surgery.



Olympus ESG-400 Key Features:

  • Universal HF Generator
  • 4 output sockets for monopolar and bipolar HF
  • Special “High Power Cut” mode for instant plasma ignition and the start of cutting
  • Unique, “fast spark monitor” to allow for a controlled, clean cut regardless of the tissue conditions
  • Unique bipolar resection function
  • 4.000 measurements per second monitoring Current, Impedance, and Voltage
  • Autostart and Autostop fuction
  • Constant monitoring system for patient plate
  • EndoAlpha compatible

Olympus ESG-400 Key Benefits

  • ESG-400: The ESG-400 Electrosurgical Generator delivers monopolar, bipolar, and advanced bipolar surgical energy to support all open, laparoscopic, and endoscopic applications.
  • USG-400: The USG-400 Generator delivers ultrasonic energy for simultaneous cut and coagulation of tissue for use with SONICBEAT Handpieces. When used with the ESG-400, the USG-400 delivers integrated bipolar and ultrasonic energy to THUNDERBEAT handpieces for reliable vessel sealing and to cut or coagulate soft tissue during open, laparoscopic (including single-site surgery), and endoscopic surgery.

Include:

  • Olympus ESG-400 Electrosurgical Generator
  • Olympus USG-400 Ultrasonic Generator
  • Olympus WB50402W FootSwitch Double Pedal
  • Olympus WB50403W FootSwitch Single Pedal
  • Olympus WA22367A Working Element Bipolar, 12°, 30°, Passive
  • Olympus A22002A Telescope 4mm, 30°,Rotatable , 2 Stopcocks, Autoclavable
  • Olympus A22026A Outer Sheath, 26fr.
  • Olympus A22040A Inner Sheath
  • Olympus A22085A Obturator
  • Olympus WA00014A HF-Cable Bipolar 4mm
  • Olympus TC-E400 Energy Cart
  • Hospital Power Supply

Reference Library

Dimensions

  • Size: (W x D x H)370 x 465 x 156 mm
  • Weight: 12.5 kg

Out Put

  • High frequency functions Monopolar / Bipolar
  • High frequency 430 kHz ±20%
  • Maximum high frequency power 320 W
  • All modes 25% duty cycle
  • RFCoag (with or without RCAP) 100% duty cycle

Power Supply

  • Voltage range 100…120 V~ / 220…240 V~
  • Frequency 50 / 60 Hz
  • Maximum input power 1500 VA
  • Power fuse 10 A (only FST-series from Schurter)
  • Terminal for potential equalization Yes

Sockets

  • MONOPOLAR 2 x 3-pin (Ø 4 mm), Internatonal standard
  • MONOPOLAR 1 x 1-pin (Ø 8 mm), Bovie standard
  • MONOPOLAR 1 x coaxial (Ø inner 5 mm / Ø outer 9 mm), Erbe standard
  • BIPOLAR 1 x 2-pin (Ø 4 mm, pin spacing 28.8 mm), Internatonal standard
  • BIPOLAR 1 x coaxial (Ø inner 4 mm / Ø outer 8 mm), Erbe standard
  • UNIVERSAL 1 x 7-pin, Olympus standard
  • Neutral electrode 2-pin standard, single or split
ESG-400 ELECTROSURGICAL GENERATOR Voltage range: 100 to 120 V~/220 to 240 V~ Frequency: 50/60 Hz Maximum input power: 1500 VA Supply fuse: 10 A (Schurter FST series only) High frequency functions : Monopolar/bipolar High frequency: 430 kHz ± 20% High frequency maximum power: 320 W Dimensions: (W x D x H) 370 × 465 × 156 mm Weight: 12.5 kgUSG-400 ULTRASONIC GENERATOR Voltage range: 120 VAC Frequency: 50/60 Hz Maximum input power: 360 VA Power fuse: 4 A, 250 V (ø5 x 20 mm) Dimensions: (W x D x H) 375 x 480 x 156 mm Weight: 9 kg

Reviews

There are no reviews yet.

Write a review

Bestsellers

Conmed Hyfrecator 2000 Electrosurgical Unit

Original price was: $895.00.Current price is: $695.00.
(0 Reviews)
  • Hyfrecator 2000 is the most widely used electrosurgical device in the world
  • Hyfrecator 2000 is more powerful and accurate
  • Hyfrecator 2000 is an essential tool for any medical practice.

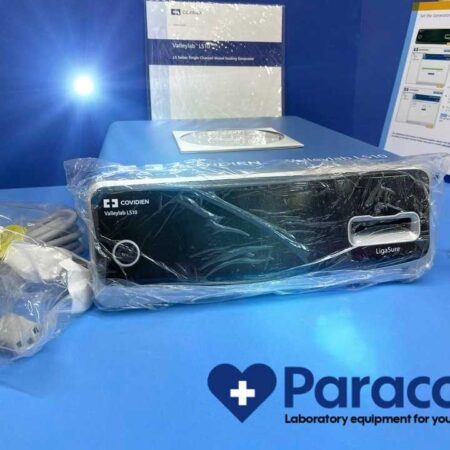

Covidien Valleylab LS10 Electrosurgical Generator
